The Lounge

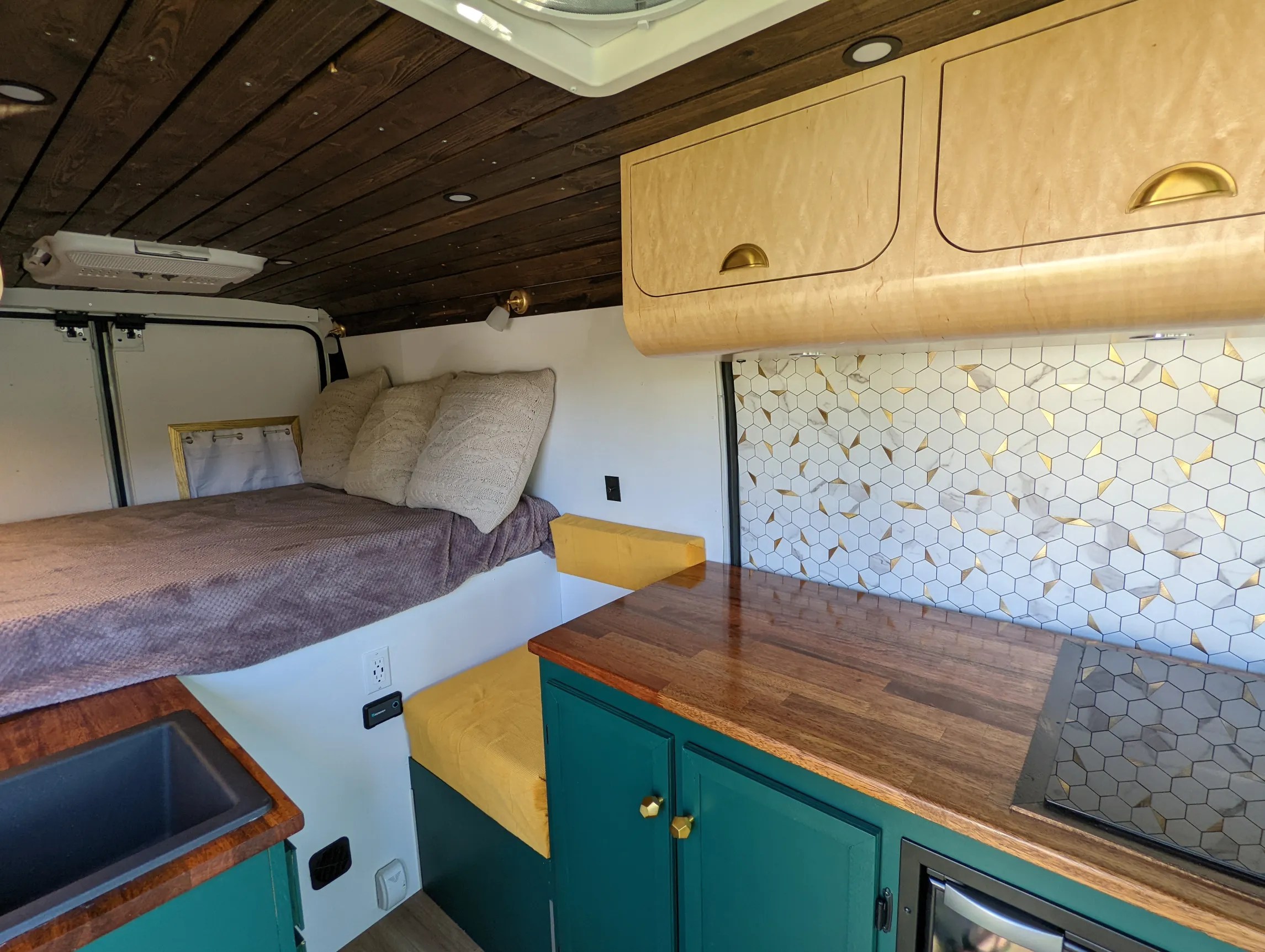

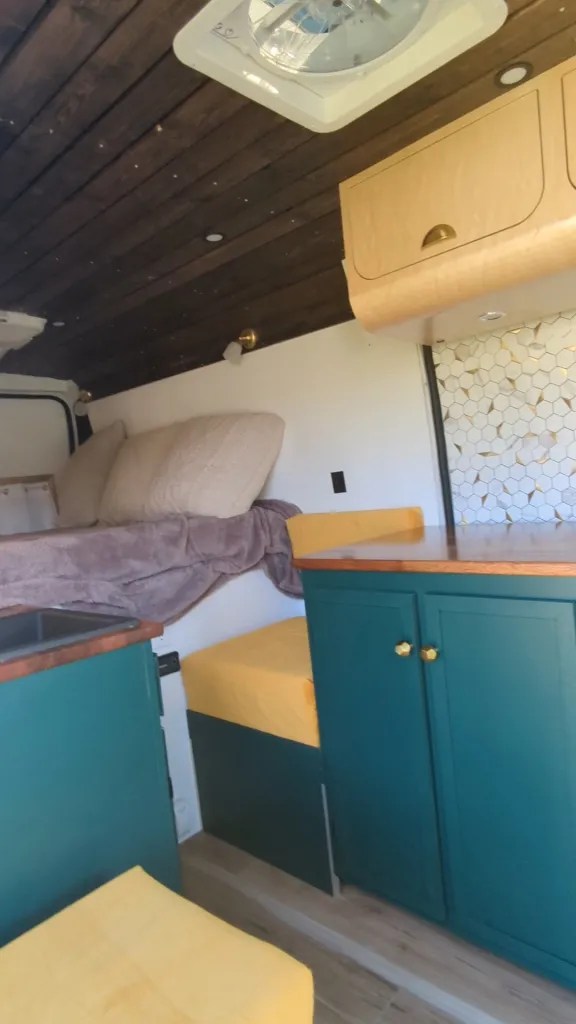

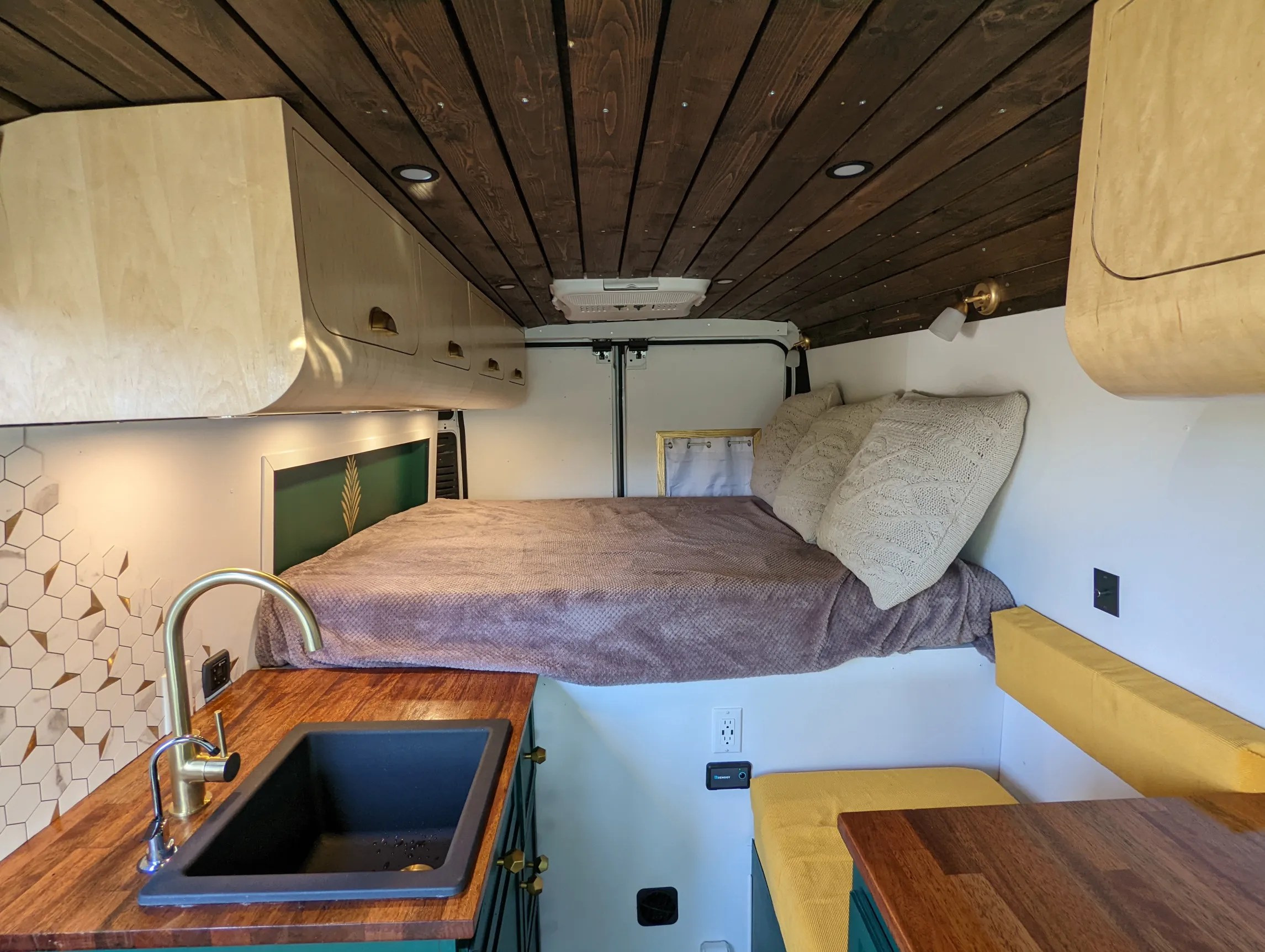

Introducing: The Lounge! A new look with all the comforts! This van came equipped with a heater, AC, hot water heater, induction stovetop and a composting toilet; all of these amenities for the first time in a West End Van. Other special features include a shoe box behind the drivers seat that can double as an ottoman, filtered drinking water from it’s own spigot and with two additional bench seats you can fit 4 people for dinner!

Build Price: $50k

A truly customized experience.

The Specs:

Electrical/Battery:

400 W Renogy solar panels
2000 W Victron inverter/charger (includes shore power)
One 200aH Lithium Battery
40 amp DC to DC Renogy battery charger (charges van while driving)

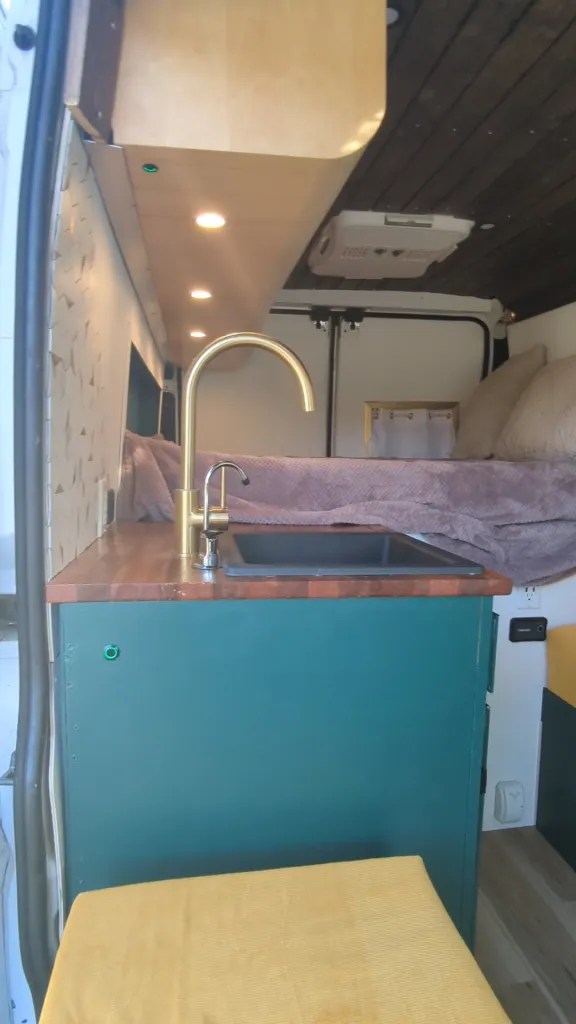

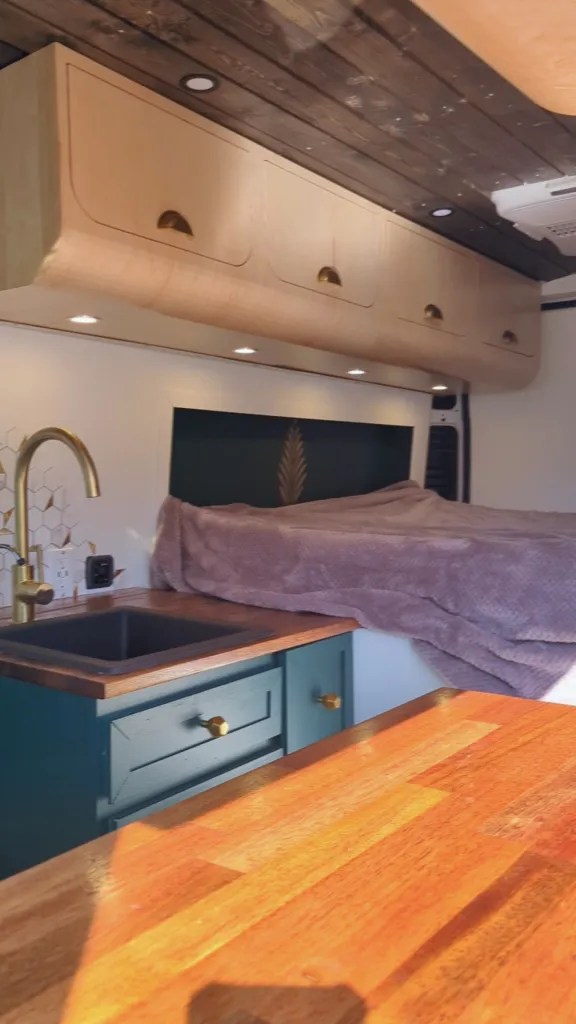

Kitchen:

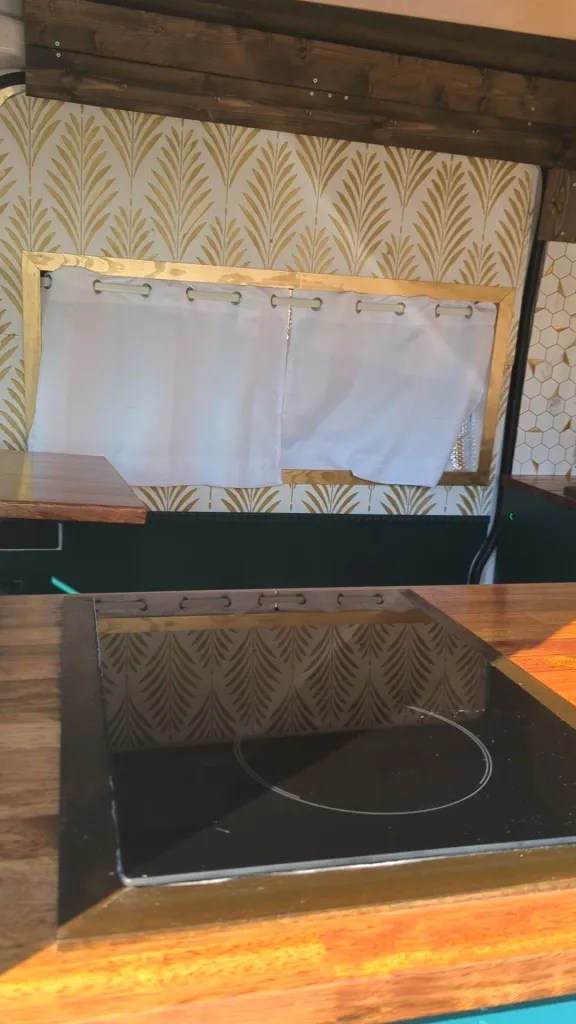

2 Burner Induction Stove
Vitfrigo 12v Fridge
SeaFlow Water Pump
30 gallons freshwater tank
4 gallon grey water tank -or- the water drains directly out of van
ample counter space, counters are butcher block and sealed with Waterlox
Lagun table for passenger
swivel seat for passenger
2 overhead cabinets for the kitchen plus storage above the cab
1 gallon refillable propane tank
Bosch 4 gallon hot water heater

Floors/Insulation/Windows:

hardwood vinyl floors, life proof, water proof
plywood subflooring plus a noise cancelling layer
walls insulated with thinsulate insulation plus reflectix for the windows to insulate the whole van
Propex heater for the winter
Two windows with sliders for airflow in the summer

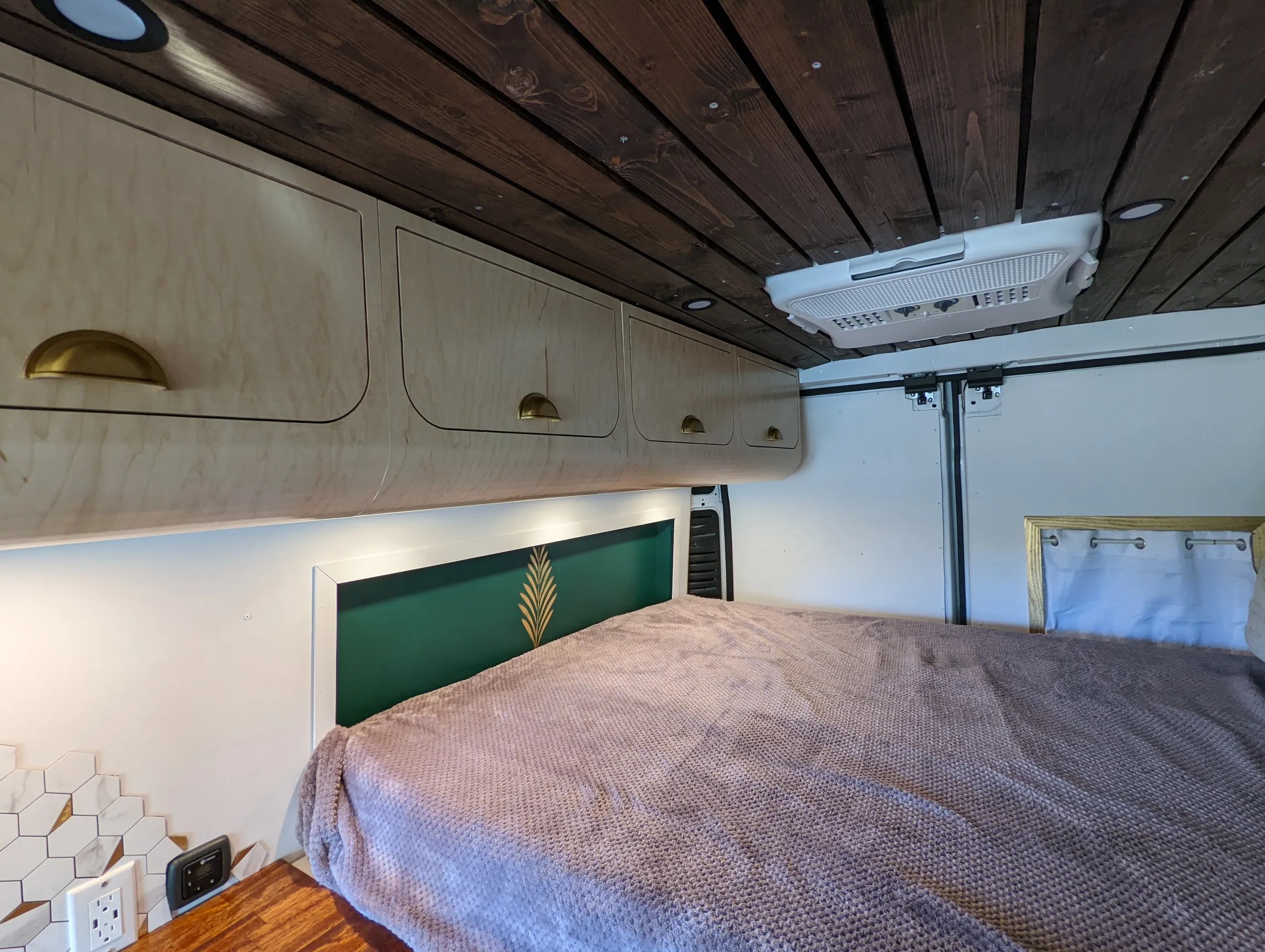

Bedroom:

Zinus gel memory foam mattress full size
4 overhead cabinets for storage
Outlets on either side of bed for charging phones
Far side of bed has space for drinks with extended wood bed frame
AC over the bed
Two bedside lamps

Additional info:

Exhaust fan over kitchen
Propane and carbon monoxide detectors
6 overhead LED puc lights on a dimmer switch
Recessed puc lights over the kitchen
Ample Garage space
